Concrete Canvas

Specialty Erosion Control And Containment Products

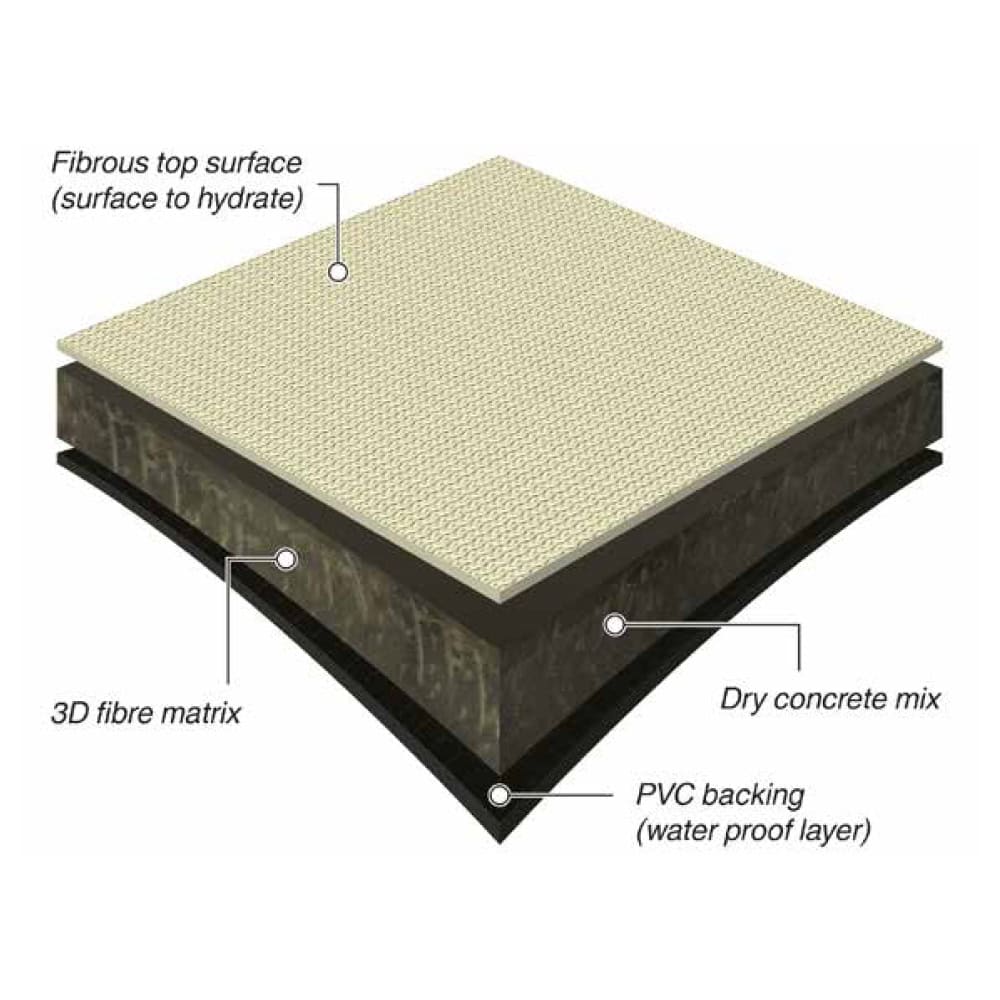

Created specifically for erosion control and containment applications, Concrete Canvas products are part of a revolutionary class of new, innovative materials called Geosynthetic Cementitious Composite Mats. This innovative, high-quality solution is a flexible, concrete-filled geosynthetic that provides a thin and durable concrete layer when hydrated. The geosynthetic is a combination of a 3D fiber matrix geotextile, which also reinforces the concrete once hydrated, with PVC backing to ensure the material is completely waterproof.

Primary applications for concrete canvas include:

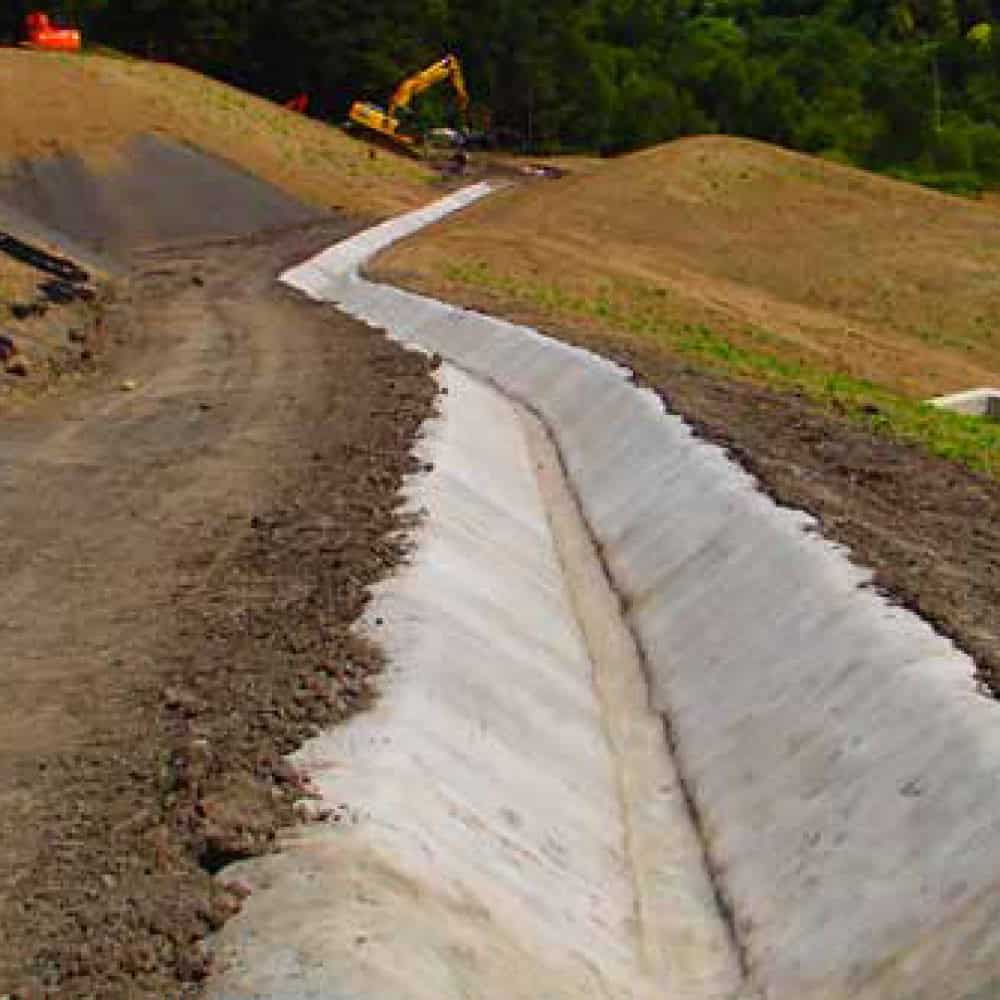

  • Channel Lining
  • Lagoon Lining
  • Culvert Lining
  • Concrete Repair
  • Slope Protection

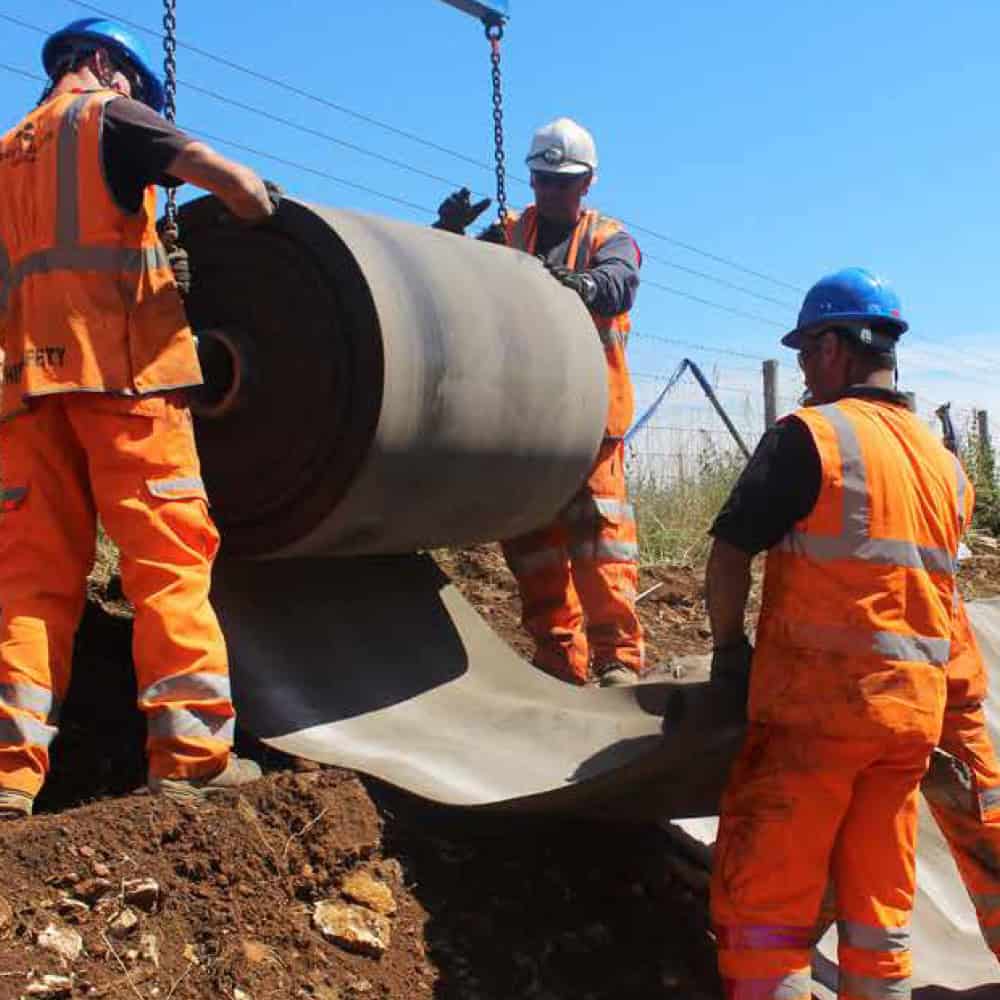

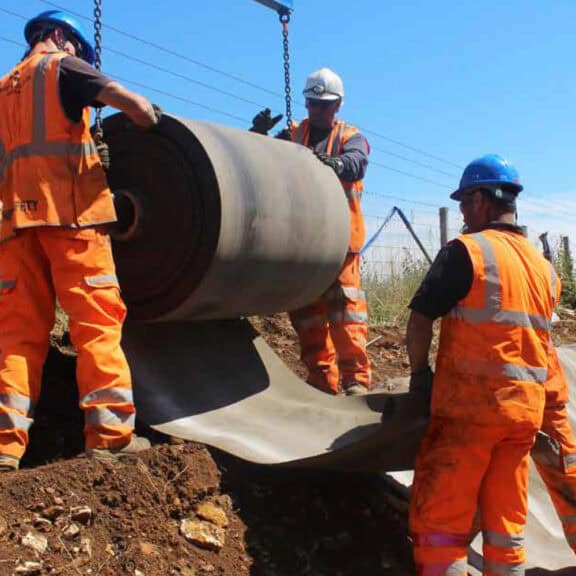

Concrete Canvas installs up to 10 times faster than traditional concrete. It is available in 3 thicknesses: 5mm, 8mm, and 13mm. For slopes 1:1 and steeper, use this geotextile with percussion anchors and get additional protection. Because it can not be over-hydrated, installing it during wet weather conditions or underwater is a breeze. It is highly impermeable with a hydraulic conductivity of better than 1 x 10^-11 m/s. Lastly, it has a high-visibility welding strip that allows joints to be thermally bonded where required.

Connect with one of our GSS experts to discuss your project requirements.

Connect With An Expert Today

Case Studies

From solving challenging application issues to severe weather response, there is no better partner than Ferguson Waterworks. Let our past performance speak for itself.
