Expanding StormRing CPS

Gross sediment removal device prevents debris from discharging through storm structure outlet pipes

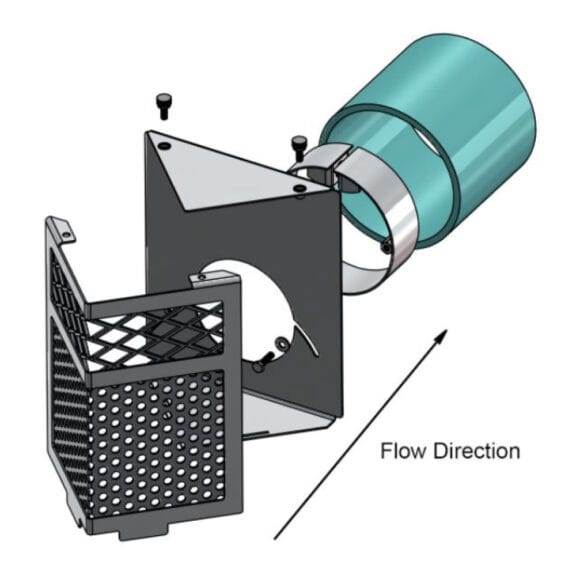

The Expanding StormRing CPS is designed to cover a specific pipe diameter by mounting directly to the inside wall of the outlet pipe. The CPS is compact and affordable. Furthermore, it is easy to install and adaptable over a wide range of catch basin sizes and styles. The design utilizes an expandable ring to mount to the inside of the outlet pipe, with a plate and screen attached to the expanded ring. As a result, it utilizes little space, maximizes the trash storage capacity within the catch basin, and allows for easy maintenance.

Standard Features of the Expanding StormRing

• Manufactured from aluminum.
• Performance characteristics
  • Flow rate: the apparent open area of the perforated screen is larger than or equal to the cross-sectional area of the outlet pipe.
  • Bypass: the open area of the bypass is equal to the cross-sectional area of the outlet pipe.
• Standard sizes are available from 6” to 24”.
